Display Devices

Image	Description	Item number	Datasheet

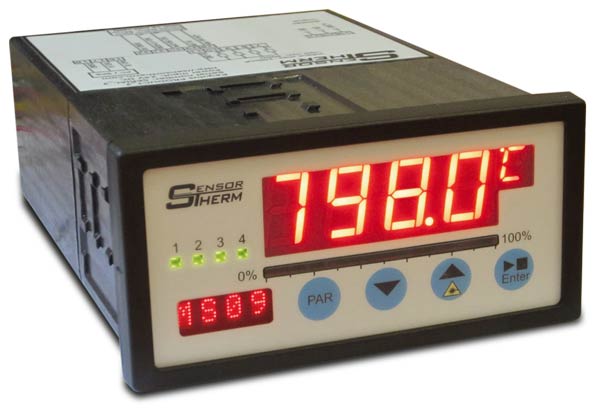

	Digital display IF00 for pyrometer settings, 4 limit switch outputs	IF00	Datasheet

Temperature Controller

Image	Description	Item number	Datasheet

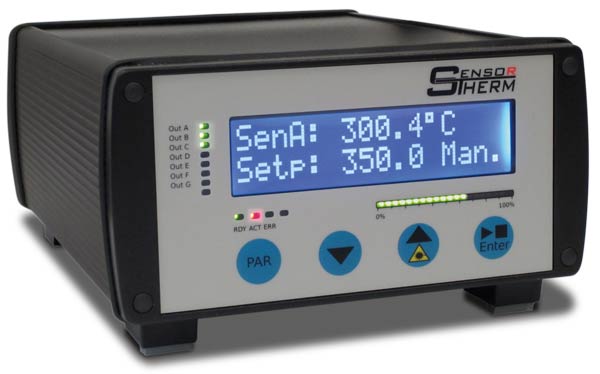

	PID program controller Regulus RD	RD00 RDK0 RDKK RDS0 RDSS RDKS	Datasheet

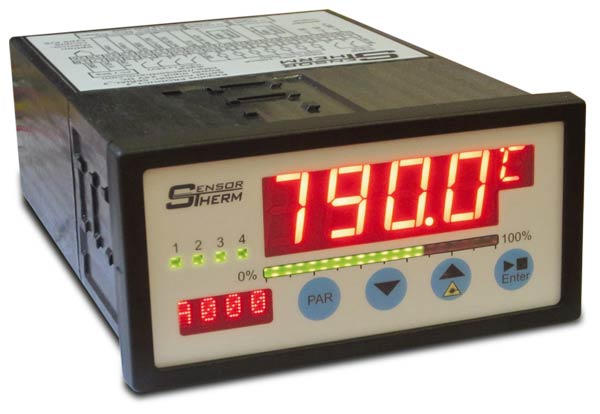

	PID program controller Regulus RF	RF00 RFK0 RFS0

Accessories for Metis Pyrometers

Image	Description	Item number	Datasheet

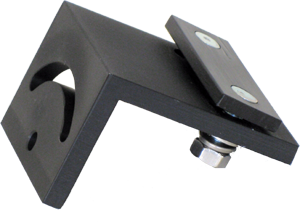

	Mounting bracket	HA10-00	Drawing

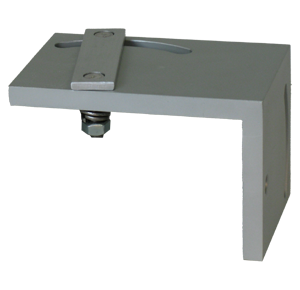

	Adjustable mounting bracket for water cooling jacket	HA12-00	Drawing

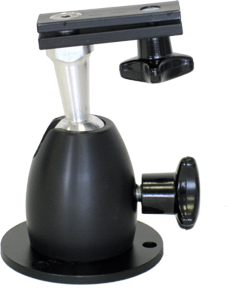

	Swivel mounting base	HA20-00	Drawing

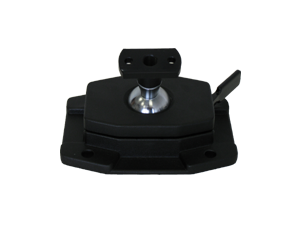

	Rugged swivel mounting base for water cooling jacket KG10	HA22-00	Drawing

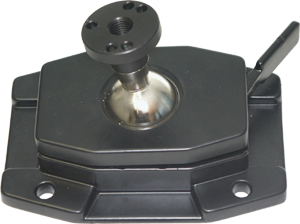

	Rugged swivel mounting base for water cooling jacket for Galaxy, scanner SC10 or cooling plate KG22 for scanner SC10	HA21-00	Drawing

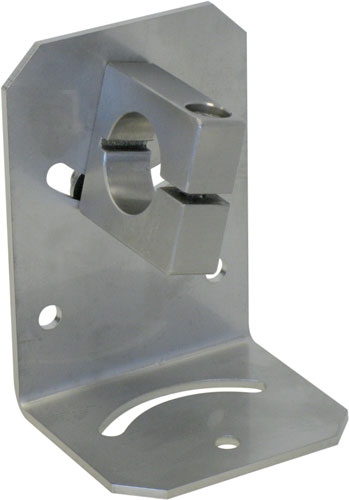

	Adjustable mounting bracket for fiber optics OL25 or OQ25	HA14-00	Drawing
	Air purge accessory for pyrometers with focusable optics	BL11-00	Drawing

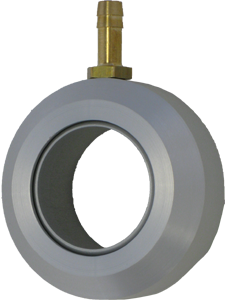

	Air purge accessory for pyrometers with fixed focus optics	BL10-00	Drawing

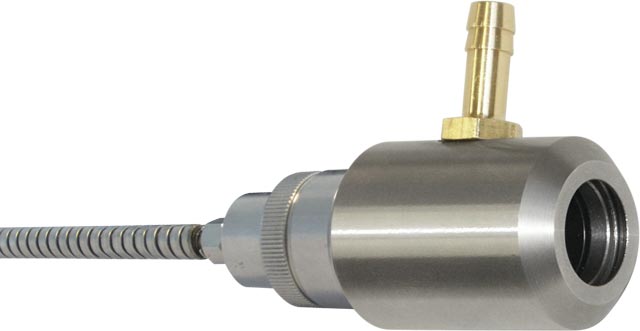

	Air purge accessory for fiber optics OL25 or OQ25	BL14	Drawing
	Vacuum feedthrough with DN16C flange or a swagelok screw joint	VD2002 / VD2004 Swagelok	Datasheet Drawing

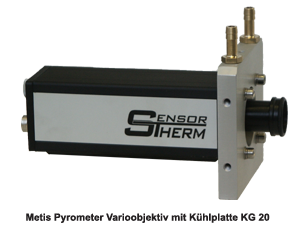

	Water cooling front plate	KG20-00	Drawing

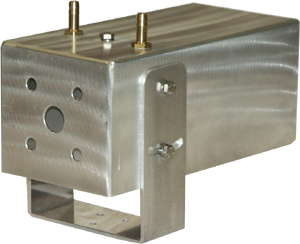

	Water cooling front plate with protective hood for Metis pyrometers	KG31-00	Drawing

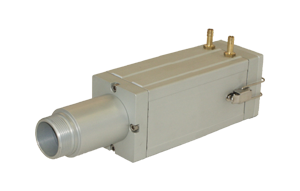

	Extruded aluminium water cooling jacket for Metis pyrometers	KG10-00	Drawing

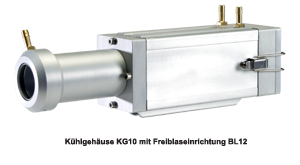

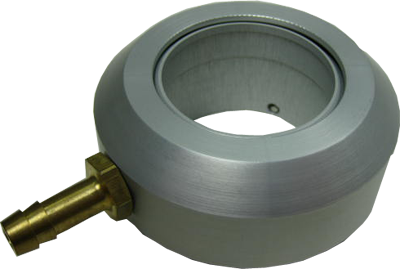

	Air purge accessory for water cooling jacket KG10-00	BL12-00	Drawing

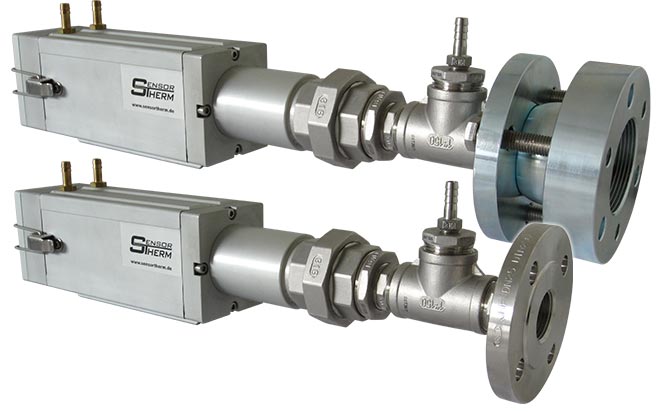

	Flange protection system	FS10 / FS13 / FS20 / FS23	Datasheet

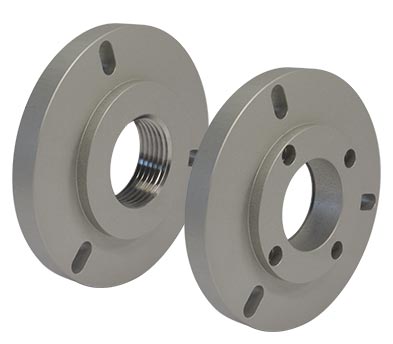

	Flange for 4 screw fixings at the front of the pyrometer or with thread for cooling housings KG10. Adaptable to Ircon.	FA05-00 / FA05-10	Drawing

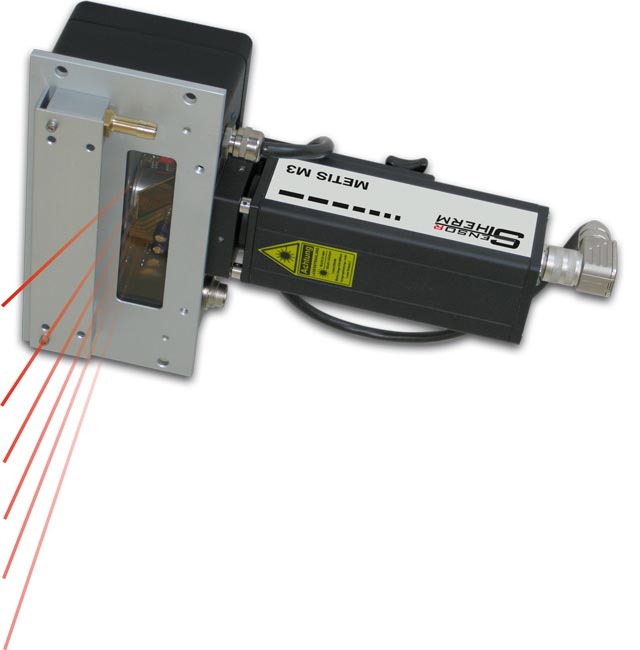

	Temperature scanner Galaxy	SC11 / SC12 / SC31 / SC32	Datasheet

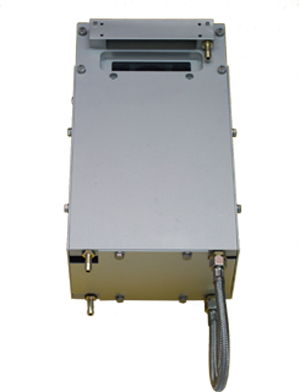

	Water cooling jacket including air purge for Galaxy SC11 / SC12 / SC31 / SC32	KG23-00	Drawing

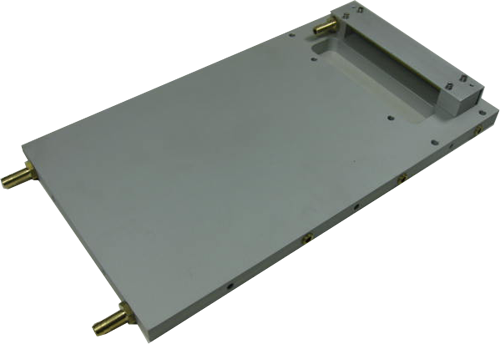

	Water cooled aluminum front plate including air purge for Galaxy SC11 / SC12 / SC31 / SC32	KG21-00	Drawing

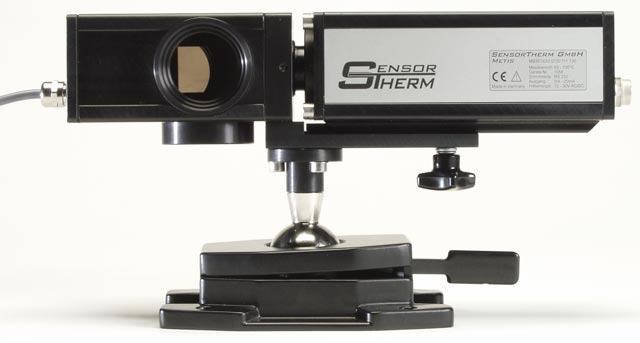

	Scanning mirror adapter	SC10	Datasheet

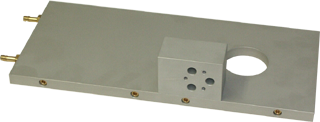

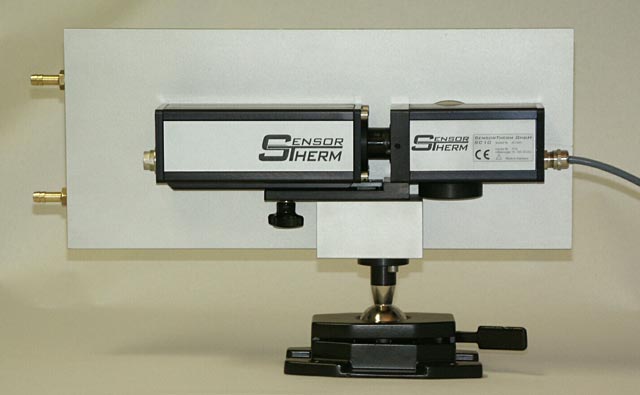

	Water cooled aluminum front plate for scanning accessory SC10	KG22-00	Drawing
	Air purge accesssory for scanning accessory SC10	BL12-00	Drawing

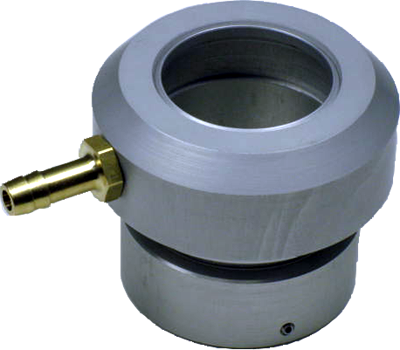

	Air purge accesssory for SC10 with KG22 cooling plate	BL12-01	Drawing

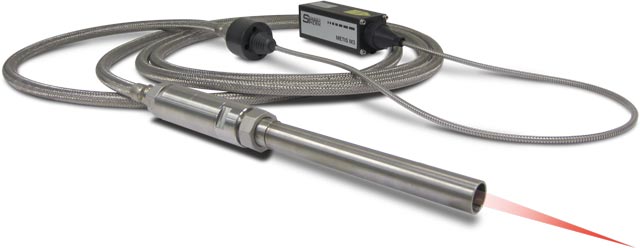

	M3 / H3 Heavy-Duty stainless steel measuring system		Datasheet

Accessories for Pyrometers Series Sirius and Infrared Switches Polaris

Image	Description	Item number	Datasheet

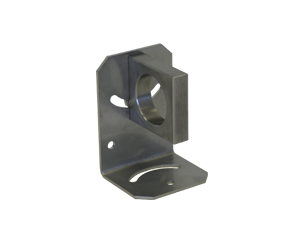

	Mounting bracket	HA11-00	Drawing

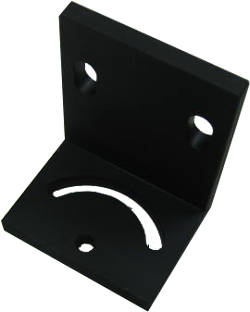

	Adjustable mounting bracket for water cooling jacket KG60	HA10-10	Drawing

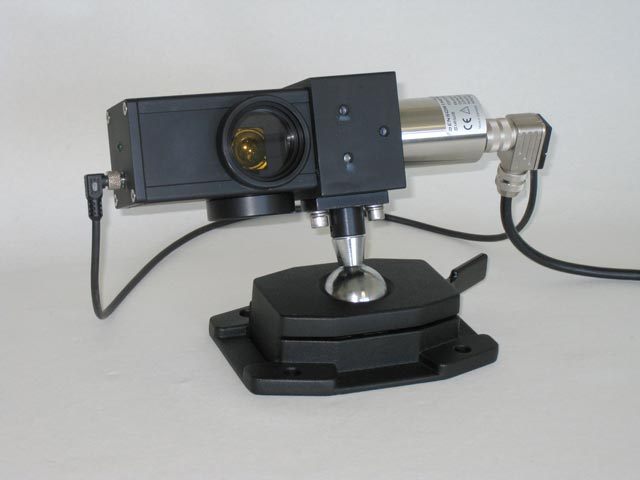

	Robust swivel mounting base for water cooling frontplate KG22 or water cooling jacket KG60 or scanner SC10	HA21-00	Drawing

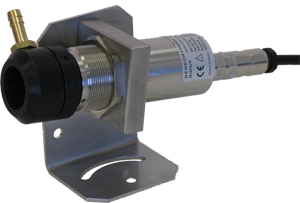

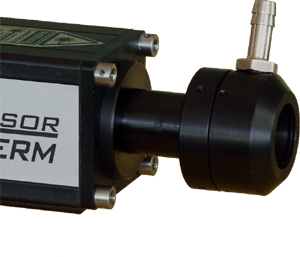

	Air purge accessory	BL11-00	Drawing

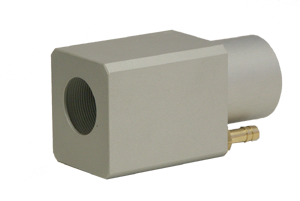

	Aluminium water cooling jacket	KG60-00	Drawing
	Aluminium water cooling jacket	KG60-01	Drawing
	Scanning mirror adapter	SC10	Datasheet
	Water cooling aluminium front plate for scanning accessory SC10	KG22-00	Drawing
	Air purge accesssory for scanning accessory SC10	BL12-00	Drawing
	Air purge accesssory for SC10 with KG22 cooling plate	BL12-01	Drawing

Electical Accessories

Image	Description	Item number	Datasheet

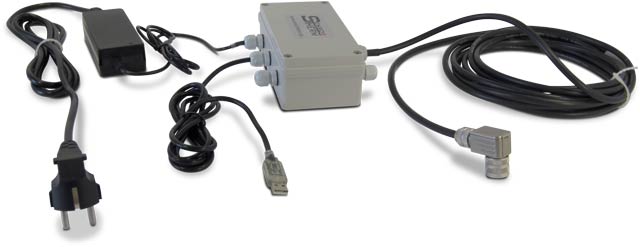

	Wiring-Box: fully assembled connection set	WB..	Overview

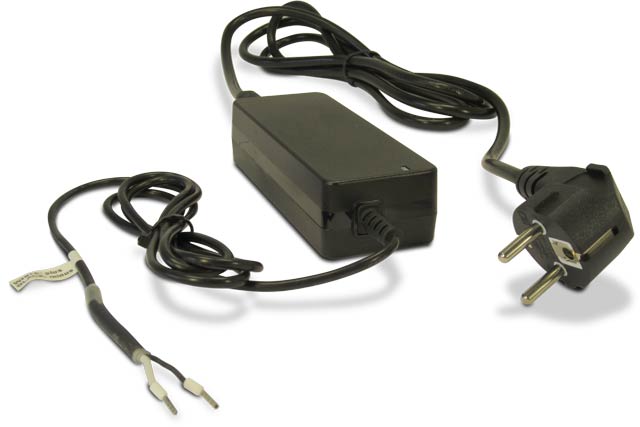

	Desktop power supply 24 V / 2.5 A	NG15	Datasheet

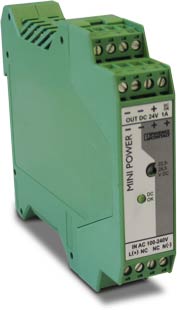

	DIN-rail power supply 24 V / 1.3 A	NG12

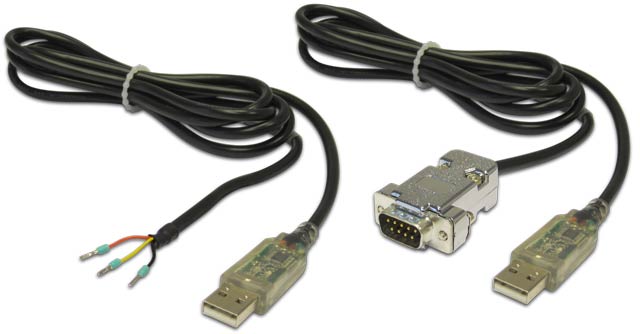

	Interface converter RS232-USB and RS485-USB with conection wires with Sub-D connector	DK5232 / DK5485 DK3000 / DK4000	Overview

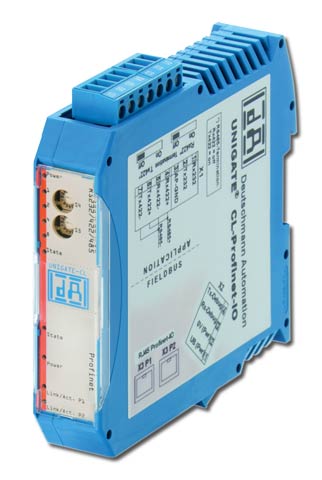

	Profinet (universal fieldbus gateway): The PN10 connects up to 5 devices with  Profinet when using a RS485 and provide their data cyclical. Using RS232 on pyrometer’s side for communication, only one sensor can be polled cyclical.	PN10

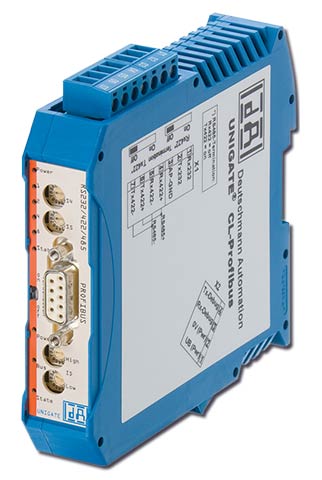

	When using the RS485 to a device, the Gateway Unigate CL for Profibus is able to connect up to 2 terminal devices with the Profibus and provides its reference data periodically. Using the RS232 for communication to the terminal device, only one sensor can be polled periodically. The used Sensortherm Gateway script supports Profibus DPV0.	PB10

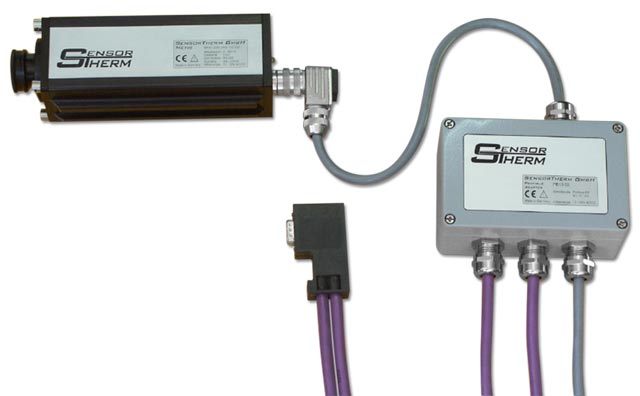

	PB70 – External ProfibusDP signal converter in external housing for wall mounting with RS232/RS485 interface via DP slave for Metis pyrometers and Galaxy scanners SC11 and SC12. Suitable for DBV0; up to 12 Mbaud; connection to pyrometer via serial interface RS232 / RS485; power requirement 15 – 30 V AC/DC, 48 – 62 Hz; die-cast housing IP65; 125 x 80 x 60 mm	PB70

Connection Cables

Image	Description	Item number	Datasheet

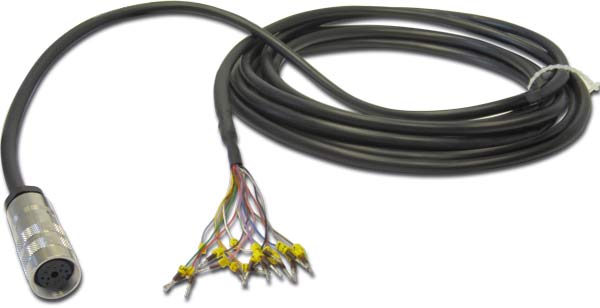

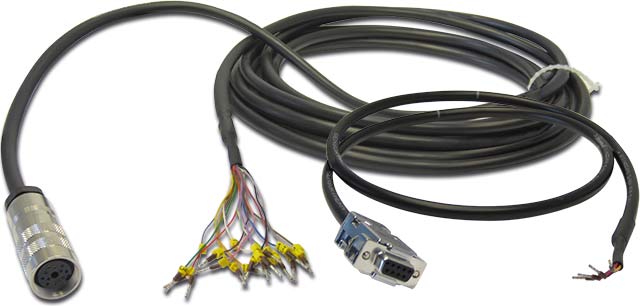

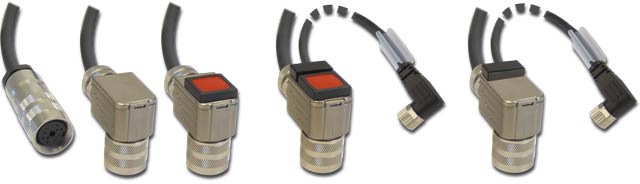

	Pyrometer connection cable (for all pyrometers with 12-pin conector) AL: Standard connection cable AM: Standard connection cable with 9-pin SUB-D connector with 1 m interface cable AU: Standard connection cable with RS232-USB interface converter AV: Standard connection cable with RS485-USB interface converter	AL..-.. AM..-.. AU..-.. AV..-..	Overview

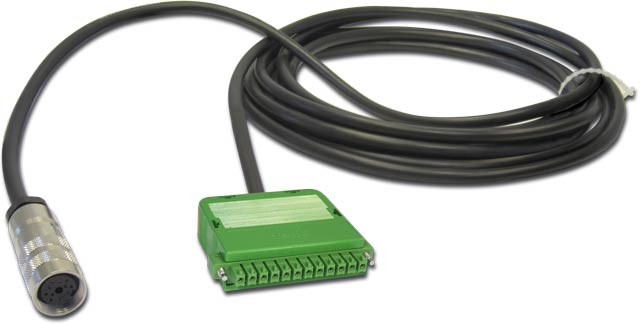

	Connection cable from PID program controller Regulus RD to pyrometer (12-pin conector) type Metis or Sirius	AR..-..	Datasheet

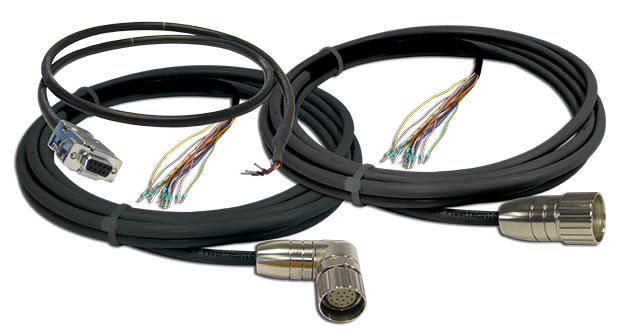

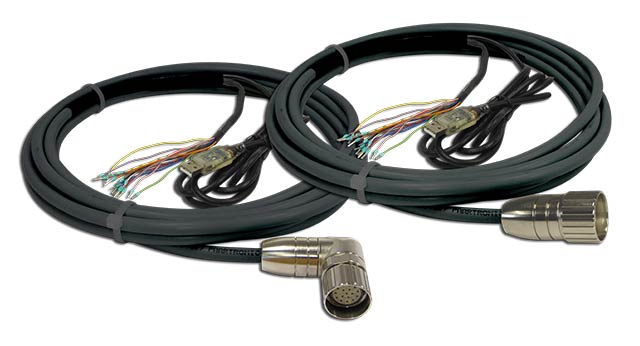

	Connection cable (for all pyrometers with 17-pin conector) Standard connection cable Standard connection cable with RS485-USB-interface converter	AS51 / AS53 AS61 / AS63	Overview

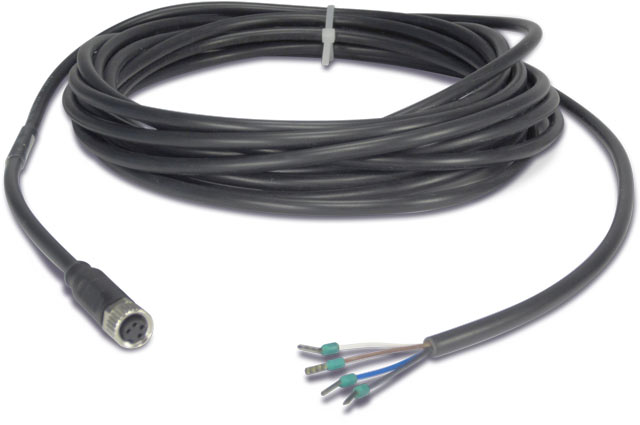

	Connection cable for scan adapter SC10 and infrared swich Polaris	AK32	Datasheet

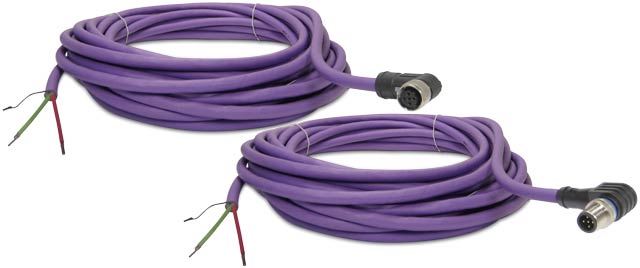

	Profibus connection cable Profibus Terminator	AK70 / AK71  AK81	Datasheet

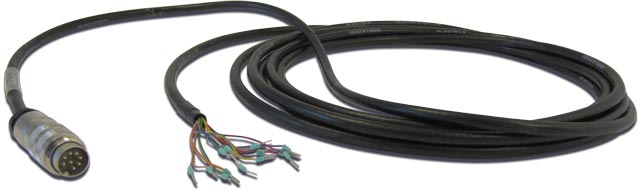

	8 pin analog output signal connection cable for scanner Galaxy SC11 / SC12 / SC31 / SC32	AK40	Datasheet

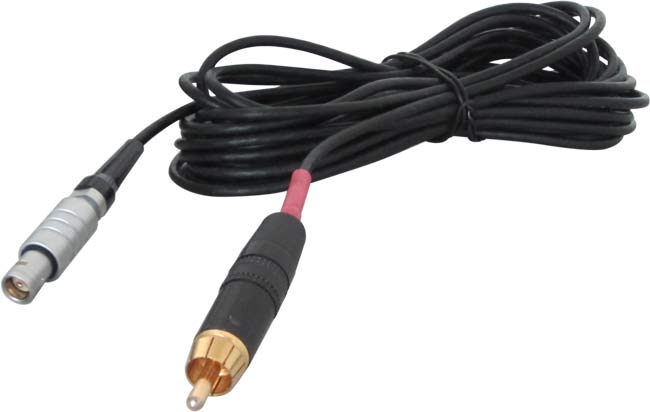

	Camera connection cable	AK50
